Quick Ship

Need Equipment Fast?

Apex now offers some equipment with a “Quick Ship” option.  The following equipment is in stock and available to ship within 5 business days.

Pre-Tested Equipment

All quick ship Machinery is tested to perfection with general materials: water, in-house bottles, and in-house caps. To ensure functionality for your product, look at machine specs with material compatibility or contact us here

Conveyor belts - conveyance solutions

Apex 10′ x 4.5″ Variable Speed Conveyor, Single Rail

* 304 stainless steel construction
* 4.5″ wide acetal non-tabbed chain belt
* 115V/1f/50-60Hz Variable Speed DC Drive
* 90Volt DC TEFC duty 1/2HP motor, 36:1 gear reducer, speeds up to 67′ per minute
* Single stainless steel rail system with HDPE wear strip & tool-less brackets
* Standard Line Height is 34″ +/- 2″
* Comes configured as a Left-to-Right Conveyor with the motor on the back

Conveyor belts - conveyance solutions

Apex 10′ x 4.5″ Variable Speed Conveyor, Double Rail

* 304 stainless steel construction
* 4.5″ wide acetal non-tabbed chain belt
* 115V/1f/50-60Hz Variable Speed DC Drive
* 90Volt DC TEFC duty 1/2HP motor, 36:1 gear reducer, speeds up to 67′ per minute
* Double stainless steel rail system with HDPE wear strip & tool-less brackets
* Standard Line Height is 34″ +/- 2″
* Comes configured as a Left-to-Right Conveyor with the motor on the back

Conveyor belts - conveyance solutions

Apex 40″ Loading Turntable, Single Rail

* Provides some independence for operator to perform other tasks
* 304 stainless steel disc top
* 304 stainless steel frame construction
* Overhead support system for bottle diverter
* Standard Line Height is 34″ +/- 2″” (custom heights quoted per application)
* 115 Volt/1Ph/50-60Hz Variable speed control box mounted on machine cabinet
* Single rail system with HDPE bottle contact surface and tool-less adjustments
* Comes configured with clockwise rotation (Easily switched in the field)

Conveyor belts - conveyance solutions

Apex 40″ Loading Turntable, Double Rail

* Provides some independence for operator to perform other tasks
* 304 stainless steel disc top
* 304 stainless steel frame construction
* Overhead support system for bottle diverter
* Standard Line Height is 34″ +/- 2″” (custom heights quoted per application)
* 115 Volt/1Ph/50-60Hz Variable speed control box mounted on machine cabinet
* Double rail system with HDPE bottle contact surface and tool-less adjustments
* Comes configured with clockwise rotation (Easily switched in the field)

Conveyor belts - conveyance solutions

Apex 40″ Accumulating Turntable, Single Rail

* Provides some independence for operator to perform other tasks
* 304 stainless steel disc top
* 304 stainless steel frame construction
* Standard Line Height is 34″ +/- 2″” (custom heights quoted per application)
* 115 Volt/1Ph/50-60Hz Variable speed control box mounted on machine cabinet
* Single rail system with HDPE bottle contact surface and tool-less adjustments
* Comes configured with clockwise rotation (Easily switched in the field)

Conveyor belts - conveyance solutions

Apex 40″ Accumulating Turntable, Double Rail

* Provides some independence for operator to perform other tasks
* 304 stainless steel disc top
* 304 stainless steel frame construction
* Standard Line Height is 34″ +/- 2″” (custom heights quoted per application)
* 115 Volt/1Ph/50-60Hz Variable speed control box mounted on machine cabinet
* Double rail system with HDPE bottle contact surface and tool-less adjustments
* Comes configured with clockwise rotation (Easily switched in the field)

Conveyor belts - conveyance solutions

Conveyor Mount Single Belt-Style Bottle Separator

* Constructed of anodized aluminum and 304 stainless steel
* Conveyor mount bracketry
* Approximate 20″ long x ¾” wide belt
* Variable speed motor and controls
* 120VAC/1 phase/60 hz
* Comes configured in Left-to-Right motor on the front

Conveyor belts - conveyance solutions

Stand Alone Transfer Belts

This bottom-less conveyor has variable speeds and is used in moving containers a short distance from one working conveyor to another. Gripping the container from both sides allows various elevations of working conveyors and gives access to the bottom side of the container, ideal for labeling, coding or verification inspection.
* The ¾” wide gripper belts are independently adjustable. They can accommodate containers from ¼” to over 7″ in diameter.
* Includes 2 variable speed drive motors and 2 controllers.
* Manual tool-less height adjustment
* Easy bottle size adjustment with hand wheel for in and out adjustment
* Overall dimensions are 36″ long X 20″ Wide. 28″ to 42″ tall
* Electrical requirements: 115VAC/1 phase/60hz
* Comes configured in Left-to-Right

Conveyor belts - conveyance solutions

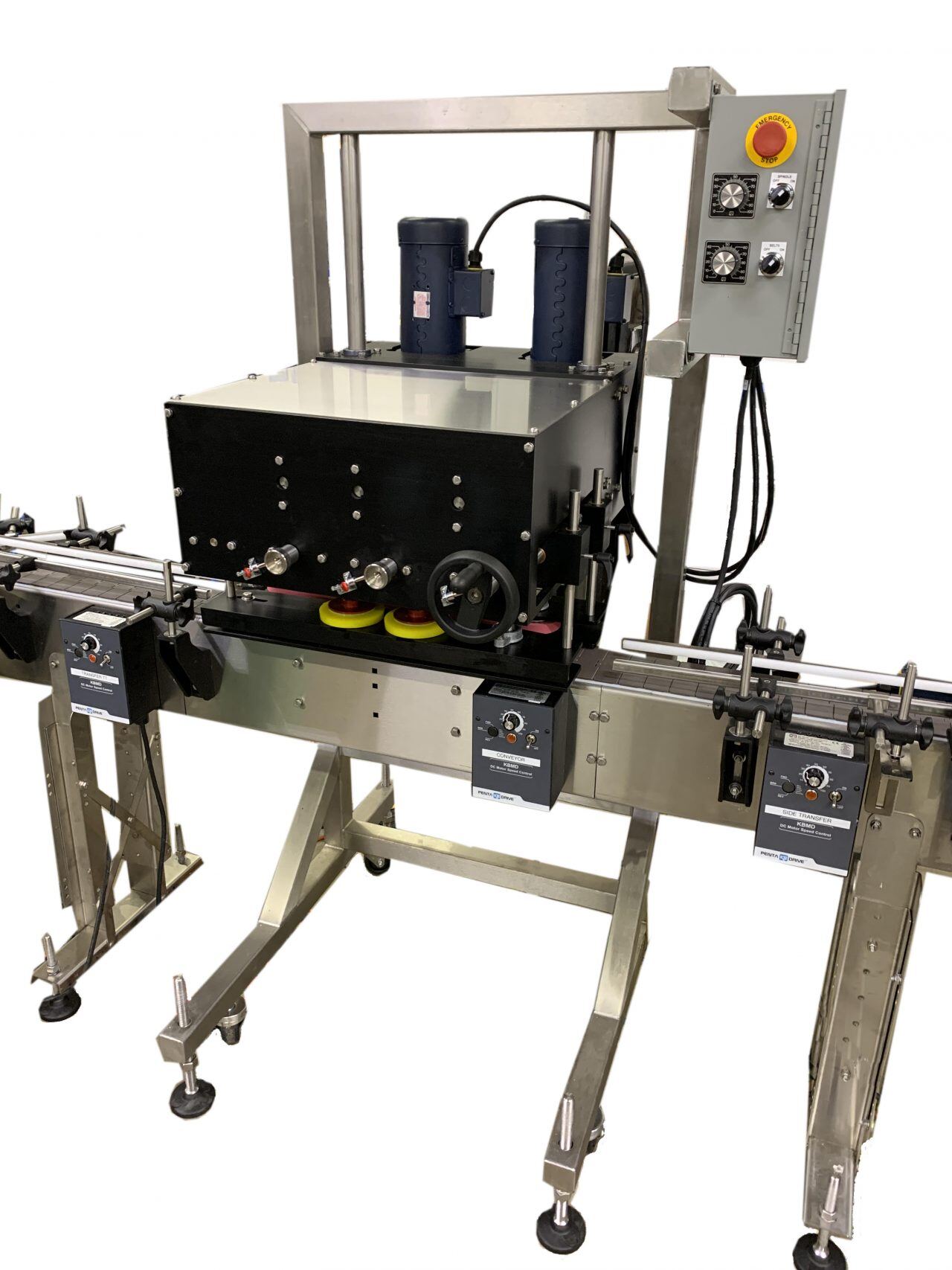

2-Station Spindle Cap Tightener

* 304 stainless steel frame with leveling pads
* Vertical and horizontal adjustment for gripper belts
* Variable speed drive controls for spindle wheels and gripper belts
* Two sets of spindles wheels
* Manual crank height up and down adjustment for capper
* 115VAC/1 phase/50-60Hz, 80-100psi compressed clean dry air
* One-year warranty on all non-wear parts
* Note: Caps must be manually placed by an operator
* Comes configured in Left-to-Right
Conveyor belts - conveyance solutions

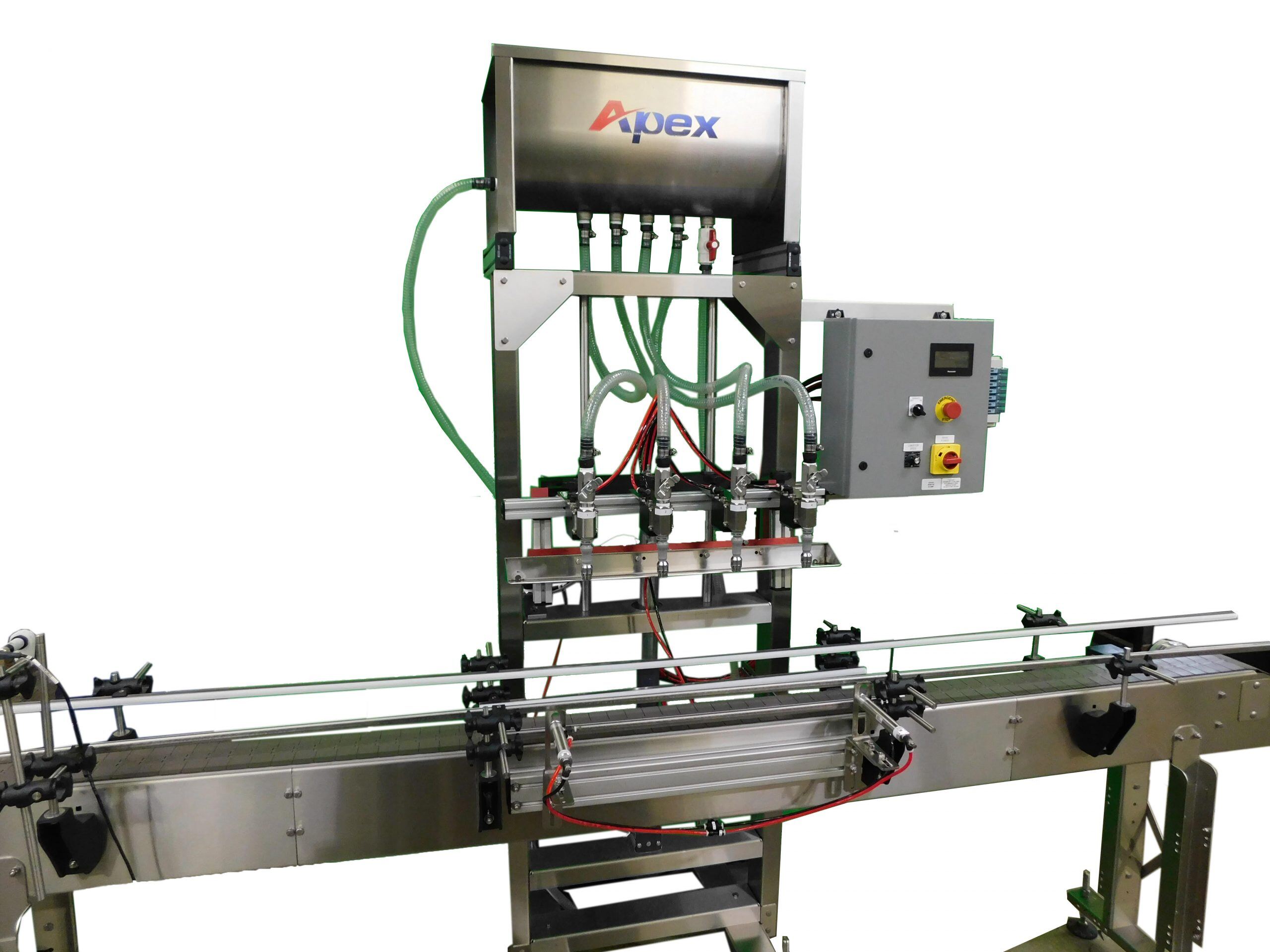

4 Head Economy Gravity Filler

* Includes Drip Tray, Indexing and Supply Pump
* 304 Stainless Steel filler frame with leveling pads
* Manual hand crank for vertical adjustment of fill heads
* Stainless steel reservoir
* Stainless steel float system and manual product inlet supply valve
* Touch screen HMI for easy set up and automatic fill set ups
* Controls mounted in a painted NEMA 12 enclosure
* 120VAC/1 phase/60hz – 20 amps
* Compressed air requirements – 80 psi @ 2cfm clean, dry air

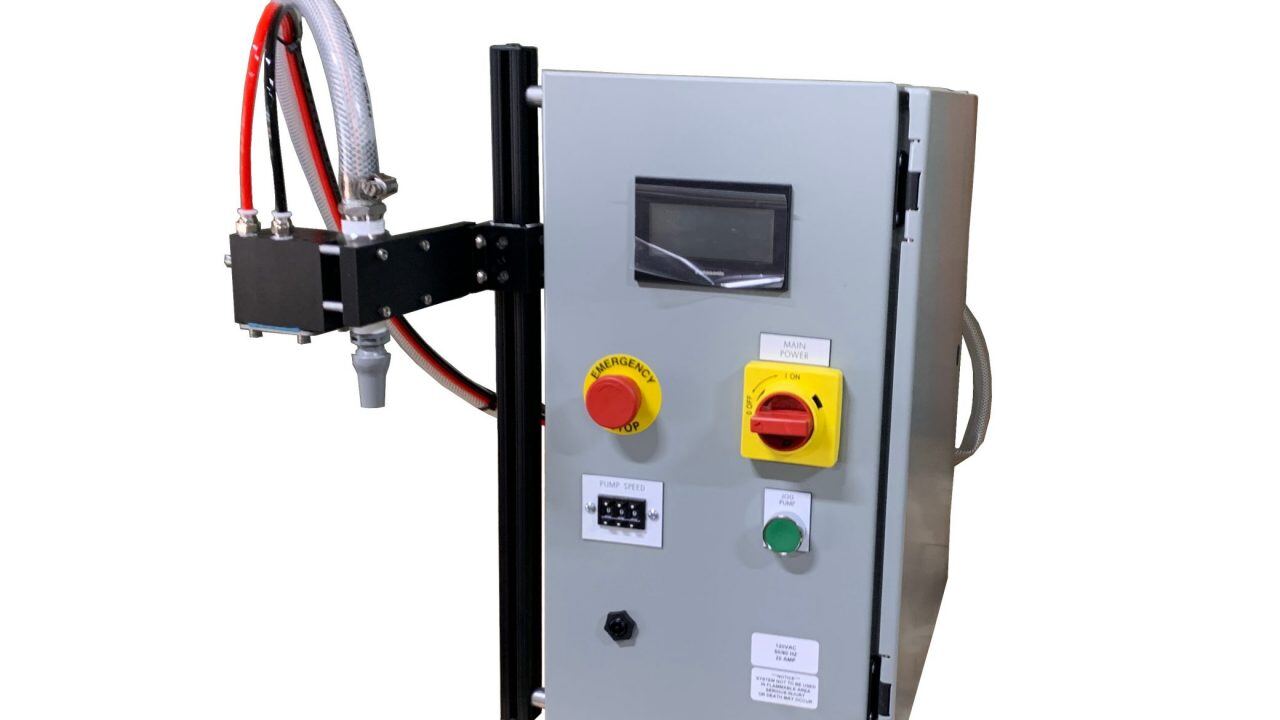

Quickship Tabletop Pump Filler

Tabletop Pump Filler

* Single head positive displacement pump filler
* Pulse base counter for wide range of fill sizes
* 316 SS gear pump with Ryton gears, carbon bushing and Viton seals (4 GPM)
* 316 SS 3/4″ fill head assembly
* Assorted nozzle sizes to accommodate different neck openings
* Touch screen for easy set up and automatic fill set ups
* Automation controls logic included in the program
* Mounted in a painted NEMA 12 enclosure
* Includes foot switch
