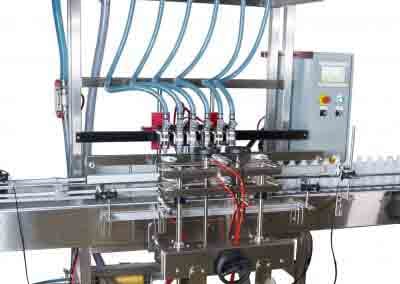

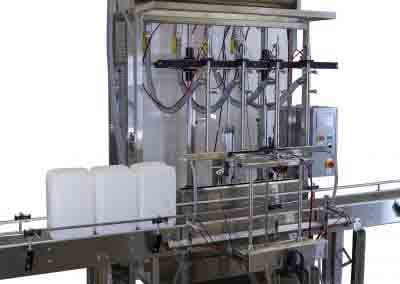

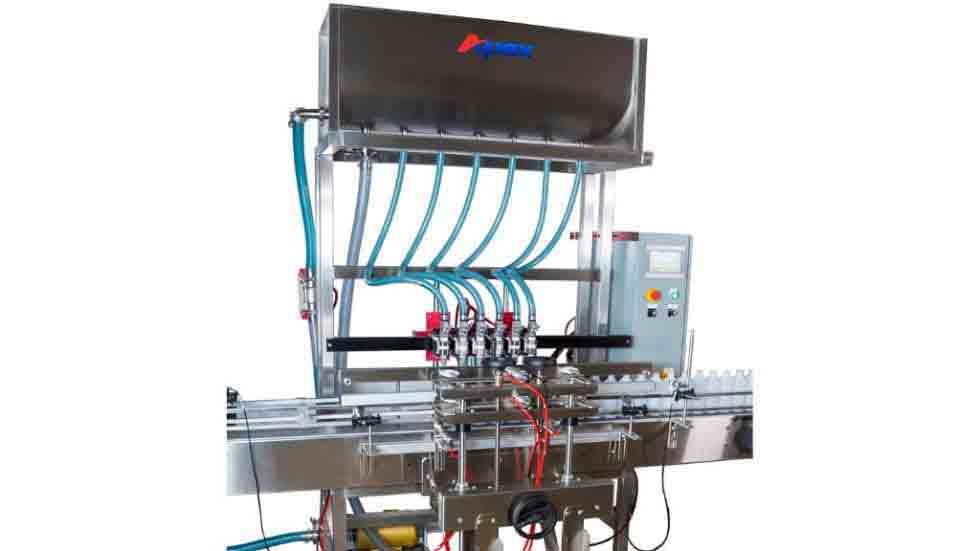

Pro Model Model Gravity Filler

An Overview Of The Pro Model Gravity Filler

Pro Model Gravity Fillers provide a volumetric time-based fill for thin to medium viscosity products. The Pro Model Gravity Filler is ideal for filling thin liquids with consistent viscosity. The volumetric time gravity filling method produces repeatable and accurate fill volumes consistently

These fillers are commonly used in the food and beverage, cleaning and specialty chemical, pharmaceutical, cosmetic and personal care industries for various filling projects. They work well in a wide variety of applications including sanitary, hazardous, flammable, and corrosive products and environments.

Pro Model gravity filling solution available for quick delivery

Key Features

  • Heavy duty 304ss free standing frame
  • User friendly PLS and color touch screen HMI
  • Available with 1 to 16 fill heads
  • Adjustable throttling valves on each fill head
  • Pneumatic indexing gates
  • Automatic product level float system
  • No bottle/no fill sensor
  • Bottle back sensor (downstream) delays filler operation until jam is cleared
  • On/off and speed controls for conveyor
  • Container counter
  • 3/4″ 316 SS fill head assemblies
  • Stainless steel “U” bottom tank
  • Float system and tank automatic product inlet valve
  • 120 volt 20 amp 80psi @2cfm
  • Front panel start and emergency stop
  • Made in the USA
  • Hazardous location/environment construction- Class I, Division II
  • All pneumatic construction
  • Corrosion resistant construction, including all contact parts
  • High temperature applications
  • Various fill head and nozzle sizes

Options

  • Stainless steel drip tray
  • Poly product reservoir
  • Sanitary upgrade for fill heads and product reservoir
  • Neck locators
  • Bottom closed nozzles
  • Heated product reservoir
  • Safety guarding
  • Starwheel or timing screw indexing
  • Bottom up filling
  • Power height fill head adjustment

    Brochure coming soon.
