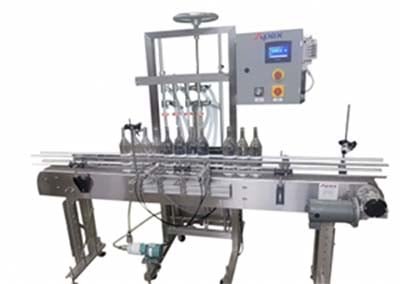

Economy Automatic Overflow Filler

Economy Automatic Overflow Fillers from Apex Filling Systems are ideal for thin to medium viscosity liquid products, including products that are “foamy” by nature.  Overflow filling machines are used to produce a cosmetic fill level, making them ideal for filling transparent containers that require a consistent fill level. Overflow Fillers are very well suited to fill water thin to medium viscosity products.

These fillers are well suited for personal care, cleaning chemicals, pharmaceutical, cosmetic, beverage or food application. Overflow filling machines are also the best choice for filling products where the internal volume of a container may vary slightly, such as glass bottles. By filling to a level, this type of bottle filler insures consistent fill levels from bottle to bottle, perfect for shelf display. They work well in corrosive, sanitary, flammable, or hazardous applications.


  • Heavy duty 304SS tig welded frame
  • Allen Bradley PLC
  • Touch screen operator interface
  • Stainless steel reservoir with Product Re-Supply System and Float
  • Available with 1 to 16 fill heads
  • Diving heads
  • No bottle/no fill sensor
  • Automatic indexing gates
  • Front panel start and emergency stop
  • Container counter
  • On/off and speed controls for conveyor
  • Bottle back up sensor (downstream) delays filler operation until jam is cleared
  • Tool free adjustment
  • Upgradeable
  • Made in the USA


  • Automatic drip tray
  • Bottle grabbers – neck grabbers
  • Star wheel or timing screw indexing
  • Clean in place system
  • Hazardous location/environment construction – Class I, Division II, Group C & D
  • All pneumatic construction
  • Corrosion resistant construction including all contact parts
  • Sanitary style construction
  • High temperature applications
  • Fill head sizes – 1/4″ up to 1-1/2
