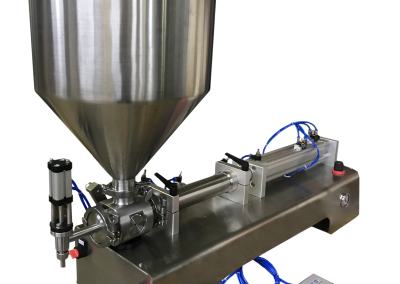

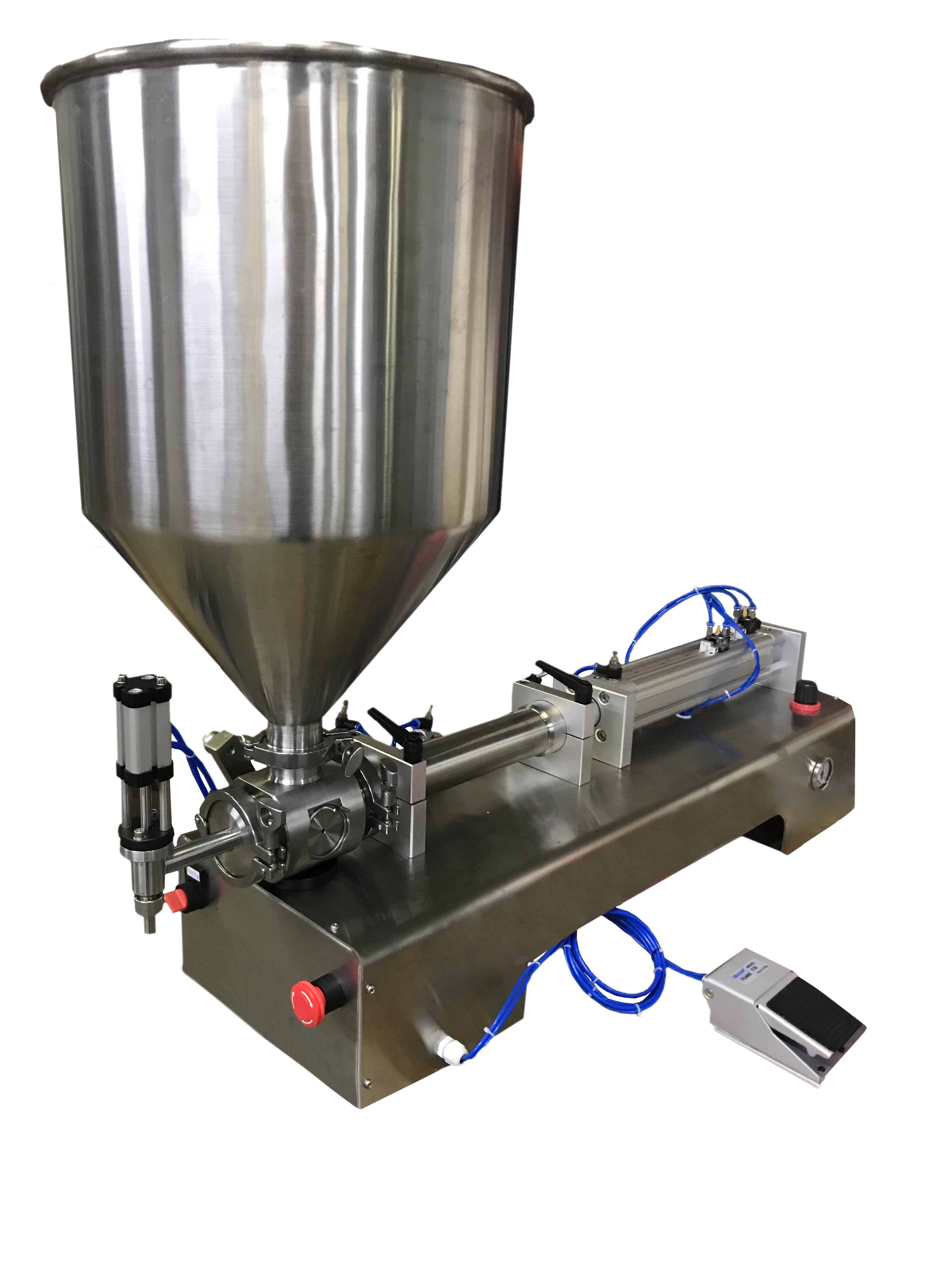

Semi Automatic Tabletop Piston Filler

Piston Filling Machines use a volumetric filling principle.  The piston draws back, allowing a predetermined amount of product from the supply system to enter the piston chamber.  This same amount of product is then pushed out of the piston and dispensed through the fill head into the waiting container.  This entry level bench top piston filling machine for viscous liquids is a highly versatile, dependable, and accurate table top filling machine.

This piston filler is capable of handling water thin to highly viscous products. This filler is often used when chunks or particles like you may find in salsa and some condiments need to be filled. This model features a highly accurate 3-way valve mechanism with fittings for the hopper, product cylinder and nozzle. Disassembly and cleaning is simple and is usually completed in a matter of minutes and typically requires no tools.  With a simple press of a foot pedal, the exact quantity of product is drawn from the product hopper and dispensed into the container. The machine operates one fill at a time, and stands by until the foot pedal is depressed again.


  • Fills liquids, creams, gels and food products
  • Available with 1 or 2 fill heads
  • Available piston sizes ranging from 2-5000ml
  • Foot pedal operation
  • Simple Speed Adjustment
  • Cone shaped stainless steel product hopper with cover
  • Filling Speeds: Up to 30 b.p.m. (depends on product and container size)
  • Fill accuracy: +/- 0.25%
  • Food and pharmaceutical grade stainless steel contact parts
  • Air Requirements: 2-cfm @ 90-psi
  • Tool free strip down for quick and easy cleaning
  • Suitable for food and pharmaceutical applications
  • All 316L stainless steel sanitary tri-clamp connections, product cylinder, and contact parts

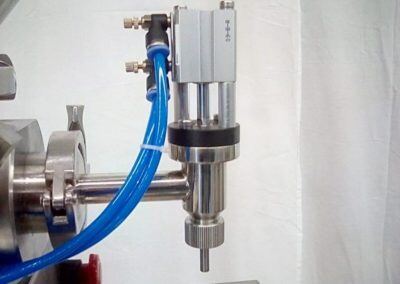

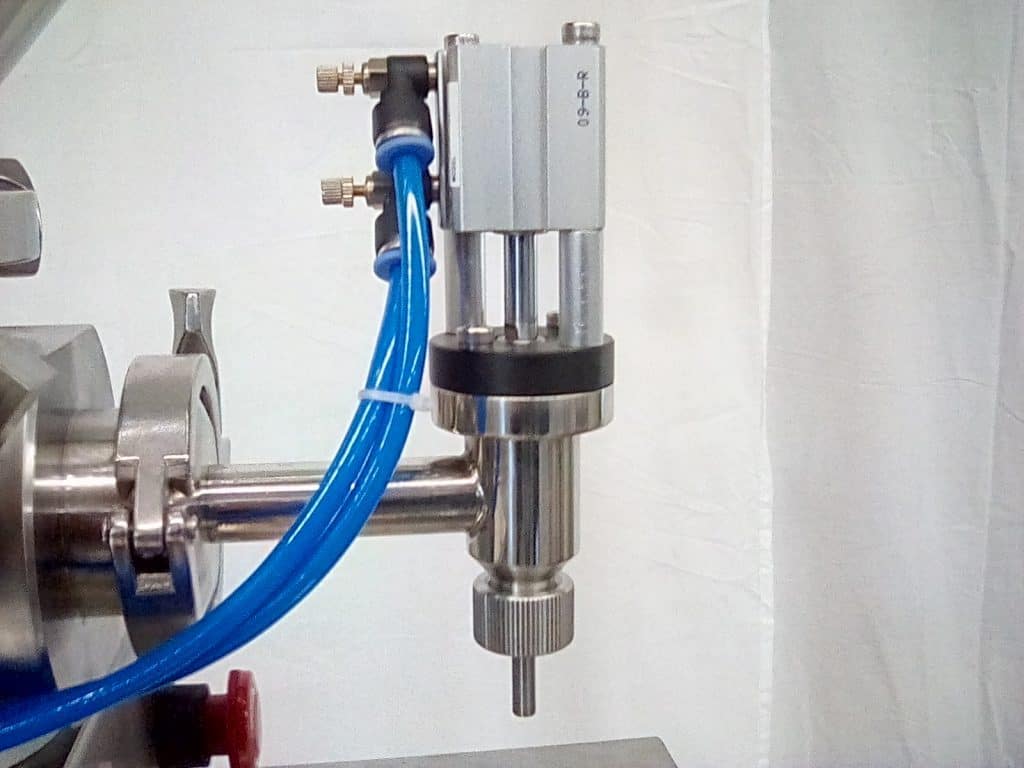

  • Bottom close positive shutoff nozzles ensure drip free operation
  • Small footprint
  • Pneumatic operation suitable for hazardous areas or wash down facilities
  • Replacement parts always in stock
  • Free Phone Support
